Tecnologia
Panoramica tecnica
Telaio
Telaio:

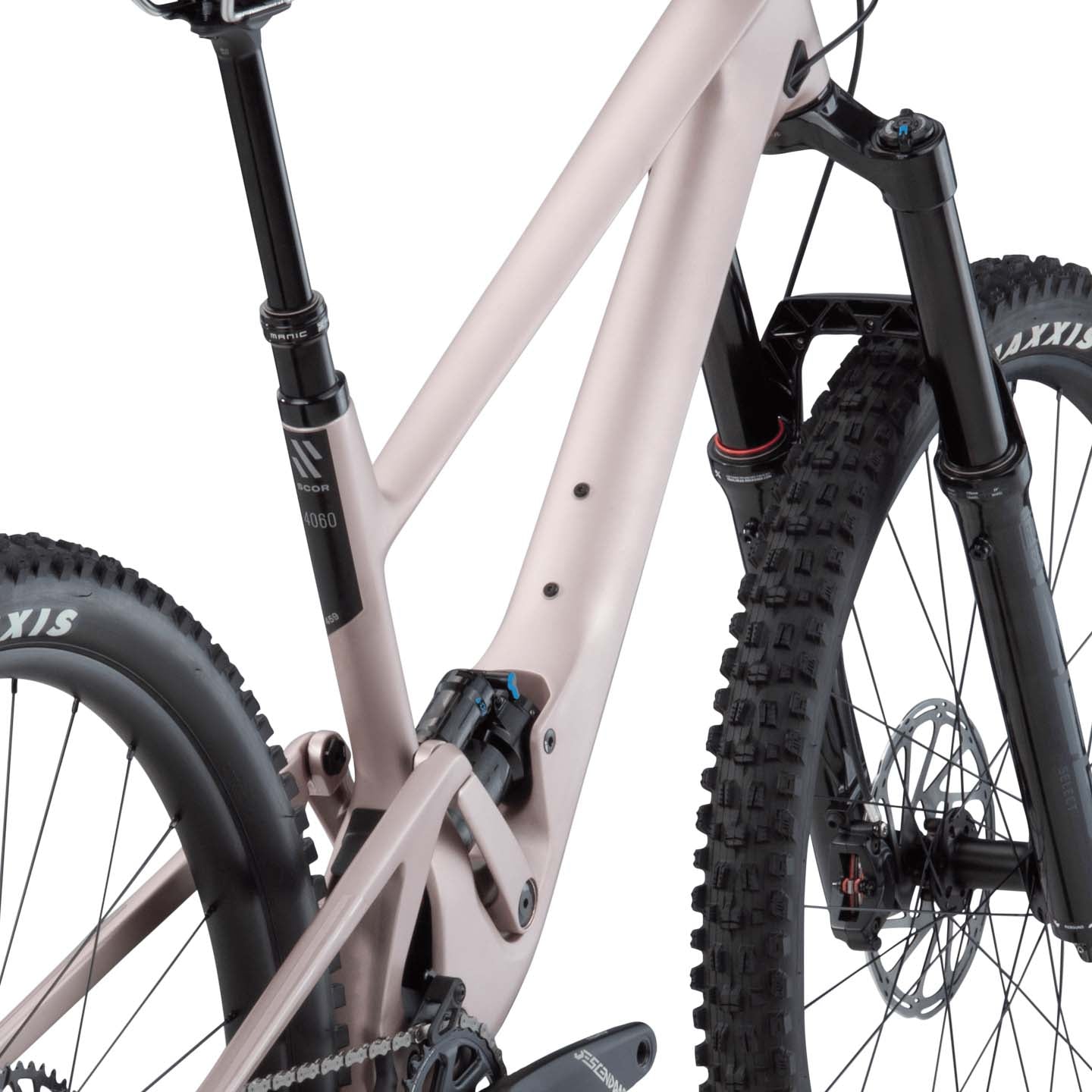

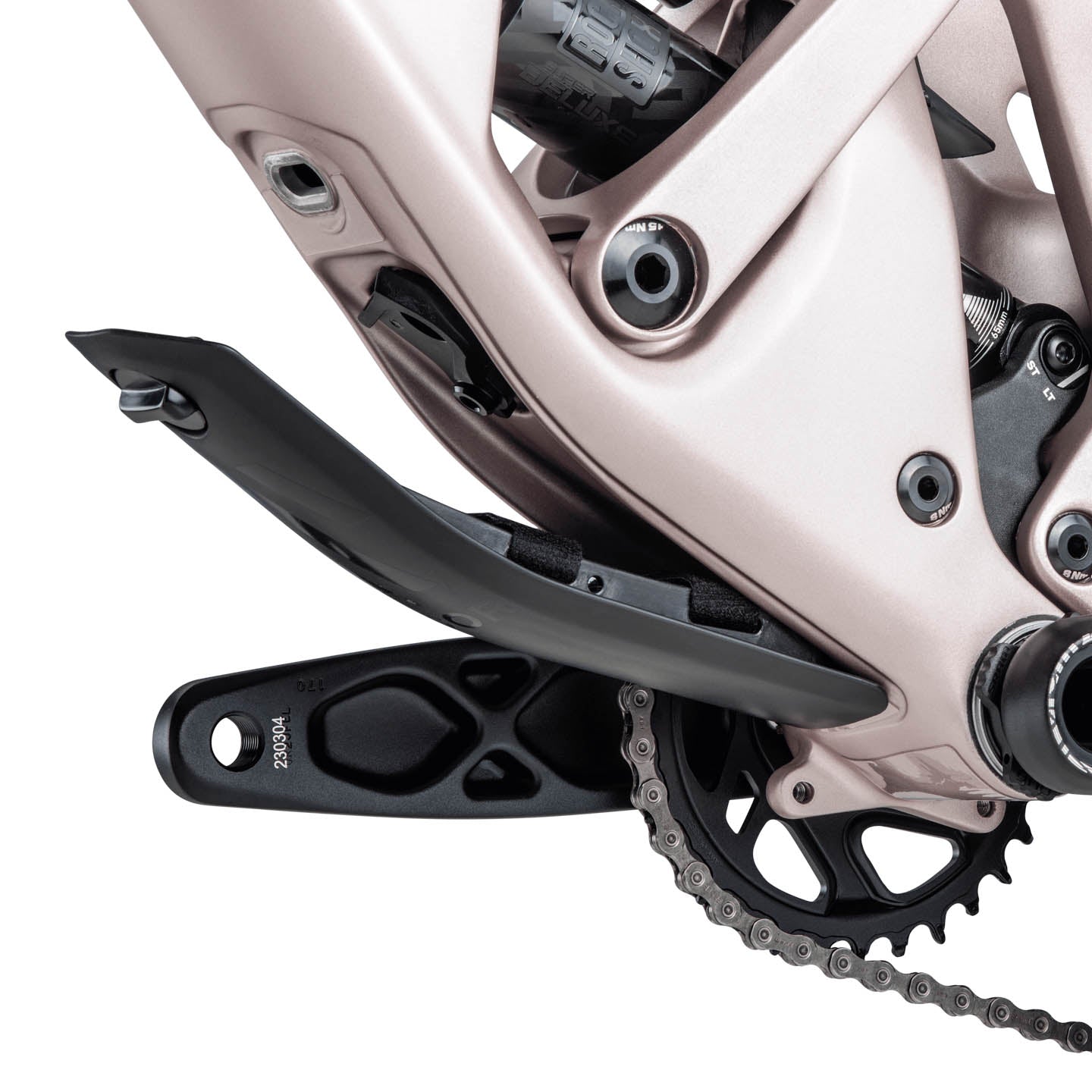

SCOR 4060 Full Carbon Frame | Lower-Link Driven Instant Center Linkage | 140 / 160mm Rear Wheel Travel | Fully Guided Internal Cable Routing | Stash Box | Boost 148 | SRAM UDH | Lower ISCG 05 Mount / Chainguide
Forcella:
RockShox ZEB Select RC2 | 170mm Travel | 44mm Rake
Sospensioni
Sospensione Anteriore:
RockShox ZEB Select RC2 | 170mm Travel | 44mm Rake
Sospensione Posteriore:
RockShox Super Deluxe Select+ RT Hydraulic Bottom Out | 205 x 65mm Trunnion
Cockpit
Attacco Manubrio:
SCOR Alloy Stem | 31.8mm Bar Bore | 35 mm Length | 0° Angle
Piega:
SCOR Alloy Bar | 31.8mm Clamp | 800mm Wide | 20mm Rise | 5° Upsweep | 9° Backsweep
Nastro:
VP VPG-125A
Seat
Reggisella:
X-Fusion Manic | S 125mm | M 150mm | L / XL 170mm Travel
Sella:
WTB Silverado Medium Steel SL
Gruppo
Guarnitura:
SRAM Descendant 6K Eagle | 170 mm Length
Corona:
32T
Pacco pignoni:
SRAM NX PG-1230 Eagle
Ingranaggi:
11-50T
Catena:
SRAM NX Eagle
Cambio:
SRAM NX Eagle
Comandi:
SRAM NX Eagle Trigger
Rapporti:
1 x 12
Movimento centrale:
DUB Interface
Freni
Leve Freno / Pinze:
SRAM Code R
Dischi freno:
SRAM Centerline | 6-Bolt
Diametro dischi:
200mm
Ruote
Cerchi:
XDX-530 | 28 Spokes | 6061-T6 Alloy | Welded Joint | 30mm Internal Width | Tubeless ready
Mozzi:
XDX-530 | 28 Spokes | Sealed Cartridge Bearings
Pneumatici:
Maxxis Assegai 29 x 2.5" 3C MaxxGrip Exo+ TR (F) | Maxxis Dissector 29 x 2.4" 3C MaxxTerra DD TR (R)
Informazioni Tubeless:
Tubeless Ready Rims | Tubetype Tires
Informazioni aggiuntive
Sezione max coperture:
Width: 64mm | Diameter: 750mm
Classificazione ASTM:
Level 4
Limite di peso massimale :
120kg
Size | S | M | L | XL |
---|---|---|---|---|
Rider Height | 155 - 170 | 165 - 180 | 175 - 190 | 185 - 200 |
BB Drop (SLACK) | 21 | 21 | 21 | 21 |
BB Drop (STEEP) | 18 | 18 | 18 | 18 |
BB Height (SLACK) | 348 | 348 | 348 | 348 |
BB Height (STEEP) | 351 | 351 | 351 | 351 |
Chainstay | 432 | 432 | 432 | 432 |
Fork Length | 580 | 580 | 580 | 580 |
Fork Rake | 44 | 44 | 44 | 44 |
Front Center (SLACK) | 773 | 798 | 823 | 853 |
Front Center (STEEP) | 761 | 785 | 810 | 840 |
Head Tube | 87 | 99 | 115 | 127 |
HT Angle (SLACK) | 63.8 | 63.8 | 63.8 | 63.8 |
HT Angle (STEEP) | 65 | 65 | 65 | 65 |
Reach (SLACK) | 435 | 459 | 485 | 515 |
Reach (STEEP) | 431 | 456 | 481 | 511 |
Seat Tube | 400 | 425 | 440 | 470 |
ST Angle @750mm Saddle Height (SLACK) | 76.5 | 76.5 | 76.5 | 76.5 |
ST Angle @750mm Saddle Height (STEEP) | 76 | 76 | 76 | 76 |
ST Angle Actual (SLACK) | 69 | 69 | 69 | 69 |
ST Angle Actual (STEEP) | 68.5 | 68.5 | 68.5 | 68.5 |
ST Angle Effective (SLACK) | 77.9 | 77.9 | 77.9 | 77.9 |
ST Angle Effective (STEEP) | 77.4 | 77.4 | 77.4 | 77.4 |
Stack (SLACK) | 601 | 612 | 626 | 637 |
Stack (STEEP) | 603 | 615 | 629 | 640 |
Stand Over Height (80 in Front of BB) | 759 | 771 | 775 | 791 |
Stand Over Height (Lowest Point) | 722 | 731 | 739 | 749 |
Top Tube (SLACK) | 562 | 590 | 621 | 655 |
Top Tube (STEEP) | 564 | 592 | 623 | 657 |
Wheelbase (SLACK) | 1206 | 1230 | 1255 | 1285 |
Wheelbase (STEEP) | 1193 | 1217 | 1242 | 1272 |
